Description
by Iain Oughtred
LOA: 13' 6"
Beam: 4' 5 1/2"
Depth: 20"
Weight: 170 lbs.

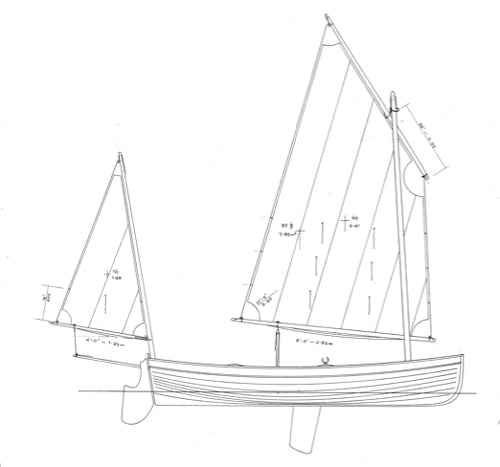

Sail Area: Lug 65 sq. ft.
Sloop - 84 sq. ft.
Yawl - 81 sq. ft.
Skill needed: Basic to Indermediate
8 strakes per side. Space stations at 21" and you have a 14'6" boat, and at 22" you have a 15'2" boat.
Construction - Glued lapstrake clinker plywood
Skill level - Intermediate to Advanced
No Lofting required
Plans include 7 sheets with instructions, plus 17 pages of additional notes from the designer.
Note: Sheet 3 was corrected in 2013, to reflect 7'8" , 2.34m (instead of 6'8" or 2.13m) for the head of the balanced lugsail.
Click here for: Materials List.
MORE INFO ON THIS DESIGN:
Tammie Norrie was featured in Boat Design Quarterly #46.
